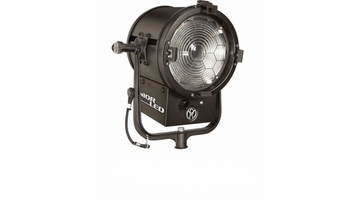

200W Junior LED Fresnel Daylight Fixture

A relative newcomer to the landscape of Mole-Richardson Juniors, the 8? Junior LED (203mm) is a perfect blend of small size, plentiful beam spread and impressive output.

Seamless integration with existing Tungsten Halogen Incandescent and drawing a maximum of 2 Amps.

Specifications

• Head: Type 8951 Daylite 5600K
• Rating: 90-250 Volts AC, 50-60Hz, 200 Watts, 1-2 Amps Max. DMX Standby Draw <.10 Amps Max.
• Light Source: (1) 5600K 90CRI Daylight LED
• Cable: Attached 25 ft (7.6m) Type SO., 3 Conductor, #18 AWG with NEMA 5-15 Edison (Other plugs and wire lengths available upon request)
• Switch: Thru-cord Toggle in Cable, DMX or Local Toggle in Trough
• Fuse: 2 Amp Slow-Blow. Fuseholder in Trough Dimming: Flicker Free, Direct DC Dimming On-Board Dimmer 100% -10% (Minimal Color Shift) DMX Dimmer 100% - 0% (Minimal Color Shift)
• Control: DMX512-A In and Out. Manual DMX Address Selector
• Condenser: 8 in (203mm) Borosilicate Glass Fresnel
• Beam Angle: 13? to 54? Variable Spot to Flood (Includes Field)
• Focusing: Rotating Knob on Front and Back
• Cooling: Passive-Forced Air
• Construction: Aluminum and Steel with Interlocking Channels
• Yoke: Cast Aluminum w/Standard 1 1 / 8 in (29mm) Pin Compliance: RoHS. CE, UL, CSA Pending
• IP Rating: 30
• Finish: Textured Black Powder Epoxy Coat. (Other Colors Available)
• Size: 12 in/305mm(d) x 14 in/356mm(w) x 20 5 / 8 in/524mm(h)
• Head Weight: 14lbs/6.40kg (Head Only) 16lbs/7.23kg (Head with 25ft/7.6m cable)
